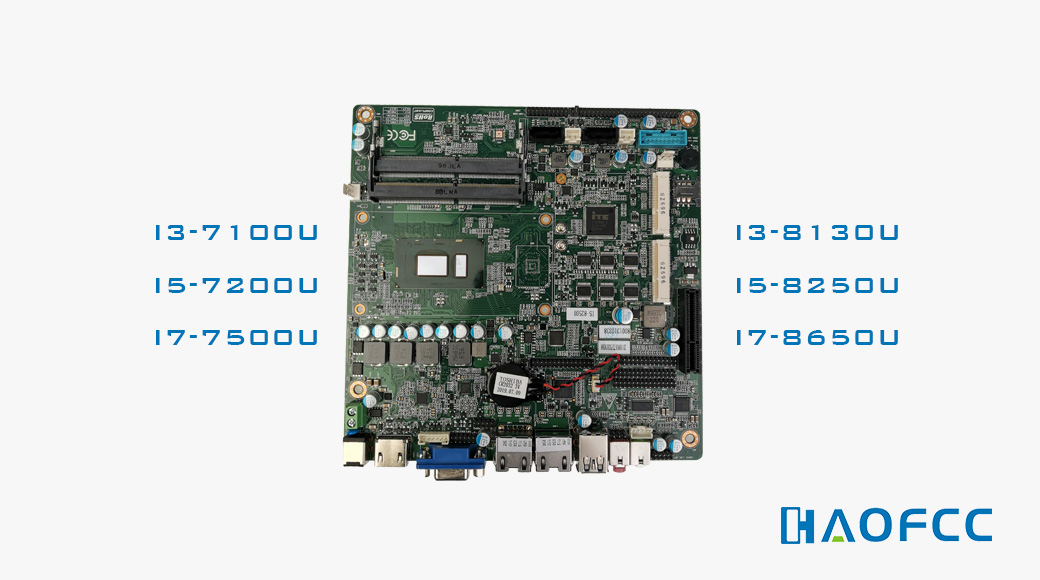

Processor
|
CPU
|
Intel® Core™ 8th Mobile Kaby lake R-U Soc i3/i5/i7 processor
|
|
|
CPU package
|
BGA
|
|
|
Chipset
|
Intel® Kaby lake R-U serial SOC
|
|
|
BIOS
|
EFI BIOS
|
|
Memory
|
Technology Architecture
|
Dual channel DDR4 2133Mhz
|
|
|
socket
|
2 *DDR4 SODIMM 260 Socket
|
|
Video
|
Graphics controller
|
Intel HD Graphics 620(I3-8130UGraphics card); graphics card model is related to CPU
|
|
|
Dual LVDS and EDP
|
Support Dual channel 24bits output, max resolution support1920 * 1200, EDP max resolution support 4096*2304（either-or either）
|
|
|
VGA
|
VGA Max resolution support 2048x1536
|
|
|
HDMI
|
Max resolution support HDMI1.4）4096*2304@30HZ support 4k display
|
|
|
Dual display
|
LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display
|
|
|
Three display
|
Support LVDS+VGA+HDMI three panel Synchronous or asynchronous display
|
|

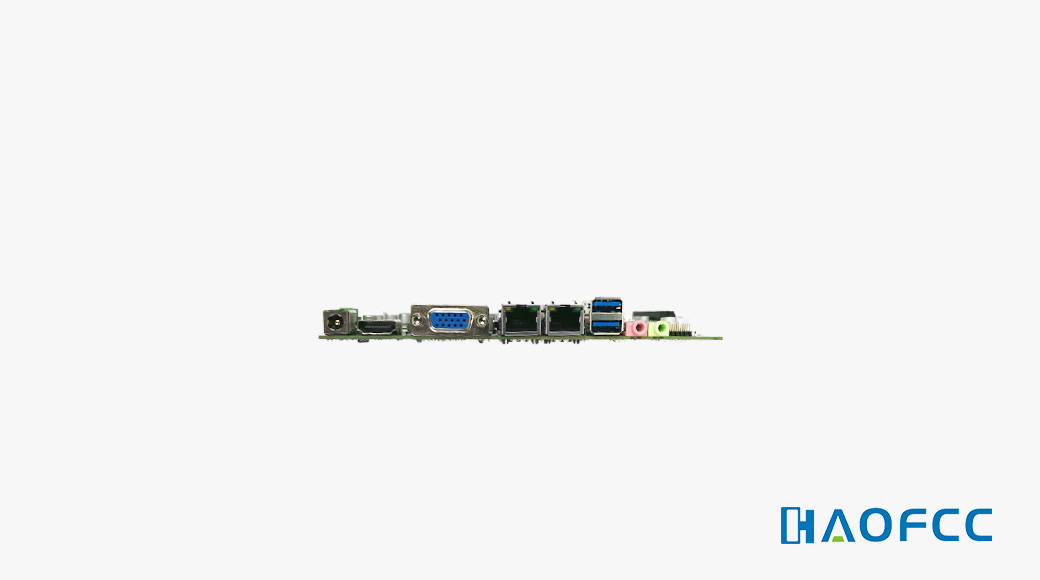

I/O backpanel
|
Ports
|
1*VGA,1*HDMI,2*LAN,2*USB3.0 1*MIC-OUT/LINE-OUT 1*DC
|
|
Internet
|
Controller
|
2*Intel I211AT（When the I/O interface is 4 USB, there is only one Intel I211AT network card.）
|
|
Audio
|
Controller
|
Raychem HD ALC662 audio decoding (left and right channel + microphone)
|
|
Super I/O
|
Controller
|
ITE8786E
|
|
Hardware controller
|
Watch-dog timer
|
0-255 seconds, providing a watchdog routine
|
|
|
Cooler
|
Aluminum fan heater (supports automatic and manual fan speed adjustment)
|
|
Output/input Ports
|
USB
|
4*USB3.0 compatible with USB2.0 / 1.1，6*USB2.0,Max support+5V/1.5A（Mini-Pcie2 and Mi-Pcie1When the USB protocol module is available, there are 4 USB2.0）
|
|
|
Com
|
4*RS-232, 2*RS422/485 optional，RS485 supports automatic flow control (optional is 6 RS232 or 1 RS485/RS422, 5 RS232)
|
|
|
PS/2
|
1*PS/2 Pin interface
|
|
|
Touch panel
|
support touch panel 4wire 5wire 8wire(optional）
|
|
|
GPIO
|
8-bit, providing routines, freely defined input/output, 3.3V@24mA level
|
|
Expansion bus
|
Mini-PCle
|
2*Mini-PCIe socket,support PCIe and USBDevice (only modules supporting PCIE protocol when USB89 pin header is available)
|
|
storage
|
SATA
|
1 standard SATAIII interface with a maximum transfer rate of 6Gb/s
|
|
|
Onboard SSD
|
Onboard SSD 16/32/64/128G（SATA2 and onboard SSD for optional）
|
|
|
M-SATA
|
1 *Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces for optional )
|
|
Power supply
|
Power type
|
DC 12V Power supply
|
|
WORKING ENVIRONMENT
|
Working temperature
|
-20℃ ~ +60℃
|
|
|
Storage temperature
|
-40℃ ~ +85℃
|
|
|
Working humidity
|
0% ~ 90%(non-condensing)
|
|
|
Storage humidity
|
0% ~ 90%(non-condensing)
|
|
size
|
size
|
170 * 170 mm
|
|
|
weight
|
0.5KG
|
|
System
|
|
Windows10 Linux
|
|
certifications
|
|
CE,RoHS,FCC
|
