General

CPU

Intel^® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP10W

Chipset

Null

Memory

Up to 8 GB DDR3L 1333 MHz, 1*SO-DIMM

Storage

1*SATA 2.0, 1*mSATA

Expansion Interface

1*Mini-PCIe (mSATA/Wifi/3G/4G Supported)

BIOS

AMI UEFI BIOS

System

Windows 7/8/10, Linux, Android

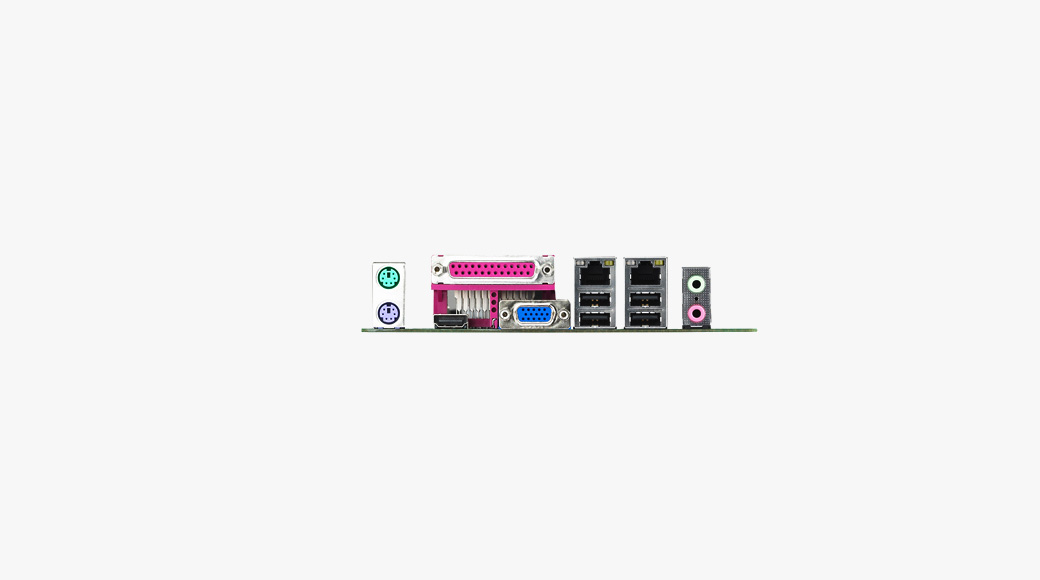

I/O Interface

Serial Port

6*RS232 (COM2 RS485, COM3 TTL optional)

USB

9*USB 2.0 (4*on rear I/O, 5*header)Ethernet2*Realtek^® PCI-E LAN for 1000Mbps

Audio

Realtek^® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports

PS/2

2*PS/2 (Keyboard and Mouse Supported)

Parallel Port

1*LPT

GPIO

8 programmable GPIO

Feature Interface

Null

Display

Display Interface

1*VGA: max resolution up to 2560*1600@60Hz

1*HDMI: max resolution up to 1920*1200@60Hz

1*LVDS: Dual Channel 24bit, max resolution up to 1920*1200@60Hz

Multiple Display

 Dual

Mechanical & Environment

Dimension

Mini-ITX, 170*170mm

Power InputDC

 12V

Temperature

 Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
