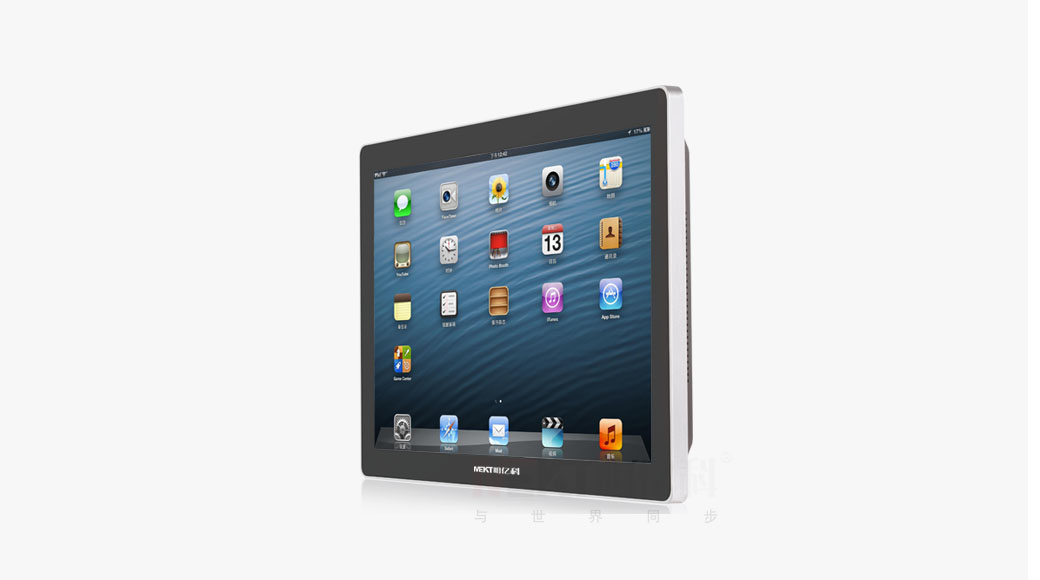

21.5-inch industrial touch display

P215WX Ver.2

Body material: aluminum alloy+sheet metal structure
Machine color: silver+black (other colors can be customized)
Waterproof grade: pure flat industrial grade IP65 dustproof and waterproof grade
Touch mode: 10 point capacitive touch, customizable AG and AR touch screens
Product features: DC12-36V wide voltage power supply, upgraded anti detachment interface/anti reverse connection protection
Main board solution: independently developed industrial grade main board solution, anti-static and electromagnetic interference resistant
Installation method: supports embedded, desktop, wall mounted, and rotary arm installation
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	MEKT明亿科
	Model	P215WX Ver.2
	Size/Proportion	21.5 inch 16:9
	Resolution	1920*1080
	Brightness	300cd/㎡(Can be customized 1000cd/㎡)
	Contrast	800:1
	Cisplay color	16.7m
	Response time	3-5ms
	Visible angle	85/85/85/85(Typ.CR≥10)
	Pixel pitch(mm)	0.24825（H）X0.24825（V）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	Click on a certain point and press for more than 3 seconds
	Touch interface	USB (optional COM)
	Support system	win7, win8, win10, android, linux and so on


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12-36V
	Functional interface	HD，DP，VGA，Audio


Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	Storage Temperature/humidity	-15℃ to +65℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
