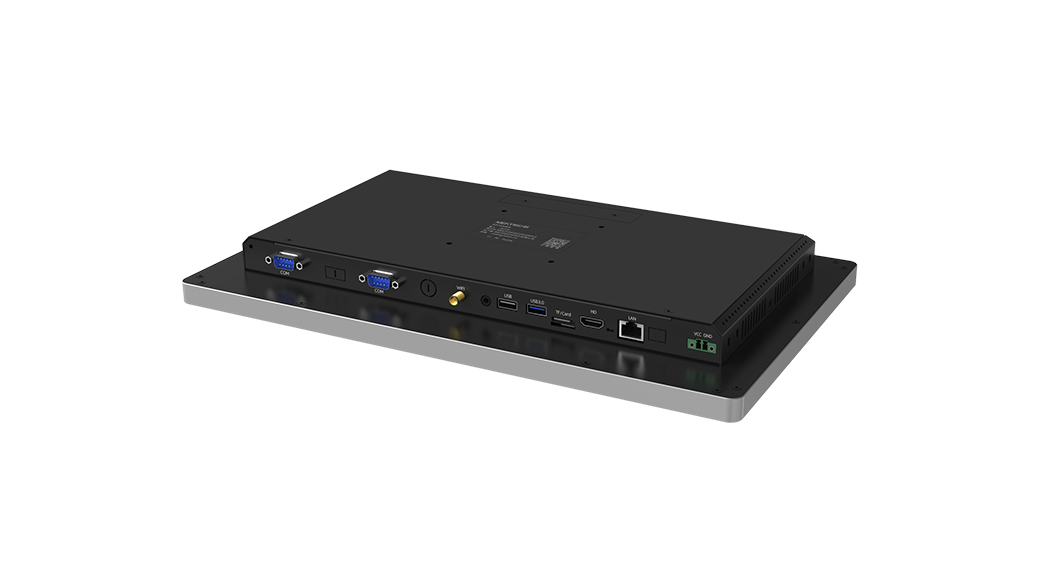

Android touch one machine

AP156WX

Using aluminum alloy + sheet metal structure
Black (other colors can be customized)
Panel waterproof IP65
VESA hole distance 75*75mm
Support embedded, desktop, wall-mounted, etc. installation
Adopt capacitive ten-point touch screen
7*24 hours continuous operation

Details
Parameter
Consulting
Technical Data

Display panel	Brand	MEKT明亿科
	Model	AP156WX
	Size/Ratio	15.6 inch 16:9
	Resolution	1920*1080
	Brightness	300cd/㎡
	Contrast degree	800:1
	Display color	16.7M
	Response time	2-5ms
	Viewing angle	85/85/85/85(Typ.CR≥10)
	Dot pitch mm	0.252（H）X0.252（V）
	Picture quality	3D noise reduction High-definition signal Progressive scan

Touch function	Touch screen	capacitive touch screen (10 points)
	Surface hardness	≥6H
	Transmittance	＞90%
	Positioning accuracy	less than 2MM
	Click life	＞60 million times
	Touch media	current sensing, capacitive touch pen, finger
	Right-click function	Click a certain point, long press for more than 3 seconds
	Touch interface	USB
	Support system	Win7、win8、win10、Android、linux etc.

Motherboard function	Motherboard	HAOFCC industrial grade motherboard
	CPU	RK3288 Cortex-A17
		Quad-core 1.8GHz
		GPU Mail-T764
	RAM	2GB (optional 4G)
	Built-in storage	EMMC 16GB (optional 32G)
	Built-in speaker	Built-in speaker
	Decoding resolution	Support up to 3840*2160
	Play mode	Support multiple playback modes such as looping, timing, and
	Network support	Ethernet LAN, wifi (expandable 3G wireless module, Bluetooth 4.0)
	Video playback	Support more than 30 formats such as wmv, avi, flv, rm, RMVB, MPEG, ts, TP, MKV, MOV, mp4, MPG, ASF, 3GP, etc.
	Image Format	Support BMP, JPG, and other image format browsing and support rotation/slide show, up to 4096*4096 resolution
	RTC real-time clock	Support
	Time switch machine	Support
	System upgrade	support USB/network upgrade
	Operating system	Android 7.1

Function interface	LAN	LAN 100/1000M adaptive
	USB	USB2.0*2
	SD/TF	SD/TF card slot
	COM	RS232*2 (TTL signal can be purchased)
	HDMI	HDMI
	Audio	Audio output, support left and right channel output

Wireless network	Wireless network card	Wifi
ON OFF	POWER	Power*1 (Can be set to power-on function)
Power input	AC/DC	DC12V
Working environment	Working temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, non-condensing
	Storage temperature/humidity	-15℃ to +65℃/ 0-90% relative humidity, non-condensing
Product service	After-sales service	One year warranty and lifetime maintenance
	Customized service	Material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc., all OEM/ODM
