Touch the all-in-one 18.5 inches

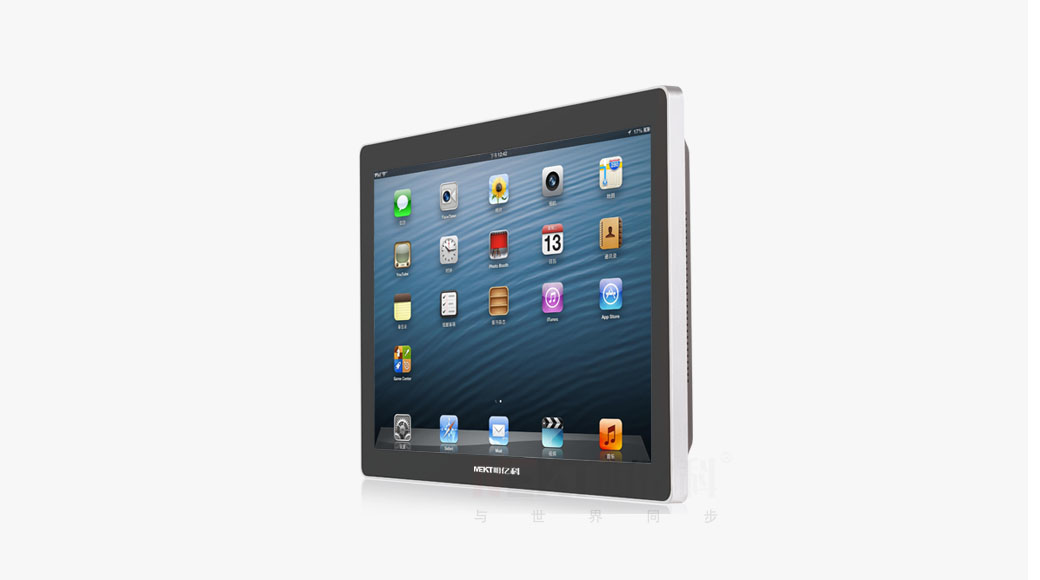

Industrial android touch one machine (AP185WX)
Product model: AP185WX Resolution: 1336*768 Product brightness :350cd/㎡ Product features: Aluminum alloy strong metal housing, dustproof, anti - vibration, anti - interference Power on function, OSD film button control Support 100*100mm 75*75mm wall/desktop, embedded installation Industrial - grade high - brightness display screen, longer life Industrial design super heat dissipation, 24 hours repeated non-stop operation
|
Brand
|
MEKT
|
Model
|
AP18.5WX
|
Size
|
18.5inch
|
Product ratio
|
16:9
|
Resolution
|
1366*768
|
Brightness
|
350cd/㎡
|
Contrast
|
800:1
|
Display color
|
16.7M
|
Response time
|
8ms
|
Viewing angle
|
80/75/60/65 (Typ.)(CR≥10)
|
scanning frequency
|
60Hz
|
Quality
|
3D noise reduction high definition signal progressive scan
|
Touch screen
|
Multipoint capacitive touch screen (import 10 points)
|
The surface hardness
|
≥7H
|
Light transmittance
|
>95%
|
Click life span
|
>7000 thousand Times
|
CPU
|
A83T, cortex-a7 frame, main frequency 2.0G.
|
Memory
|
DDR3 2GB
|
Internal storage
|
EMMC FLASH 8GB
|
Broadcast mode
|
Supports multiple playback modes such
as loop/timer/interrupt
|
Network support
|
Ethernet, support WIFI (extensible 3G wireless module)
|
Video playback
|
Support WMV, avi, fiv, rm, RMVB, mpeg, ts, mp4, etc
|
Image format
|
BMP,JPEG,PNG,GIF
|
USB 2.0
|
2*USB (add 1 USB, RS232 will be one less)
|
RS232
|
2*RS232
|
SD card slot
|
1 * TF card slot.
|
Ethernet
|
10M/100/ adaptive Ethernet.
|
WIFI
|
Built-in WIFI
|
HDMI The output
|
1* support 1080P output.
|
Audio and video output
|
Support CVBS video in and out, left and right channel output.
|
RTC real-time clock
|
support
|
Timing switch
|
support
|
System upgrade
|
Support USB/TF card/network upgrade
|
Support system
|
Android 4.4
|
Working temperature
|
-5 ~ +55℃
|
Storage temperature
|
-5 ~ +60℃
|
Relative humidity
|
5% ~ 95% No frost
|
The machine color
|
Silver edge + black
|
Product net weight
|
About 6 KG
|
Features
|
Aluminum frame, metal material strong - solid shell, dustproof, anti - vibration, anti - interference.
|
|
Power on function
|
|
Support 75*75mm wall-mounted/desktop type, embedded installation
|
|
Adopt industrial grade high brightness screen, life is longer.
|
|
No border design, beautiful appearance.
|
|
Adopt the world leading projection multi-point capacitive touch screen with stable performance, precise positioning and no drift, sensitive to touch.
|
The standard interface
|
DC USB*2 TF card RJ45 HDMI RS232*2 GPIO
|
Free accessories
|
Power (12V2.6A) power cord, manual
|
After-sales service
|
One year warranty
|
Personality customization
|
Customizable product material, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc., can be OEM/ODM.
|
Aluminum alloy strong metal housing, dustproof, anti - vibration, anti - interference
Power on function, OSD film button control
Support 100*100mm 75*75mm wall/desktop, embedded installation
Industrial - grade high - brightness display screen, longer life
Industrial design super heat dissipation, 24 hours repeated non-stop operation
|
