LCD 8.4 inches

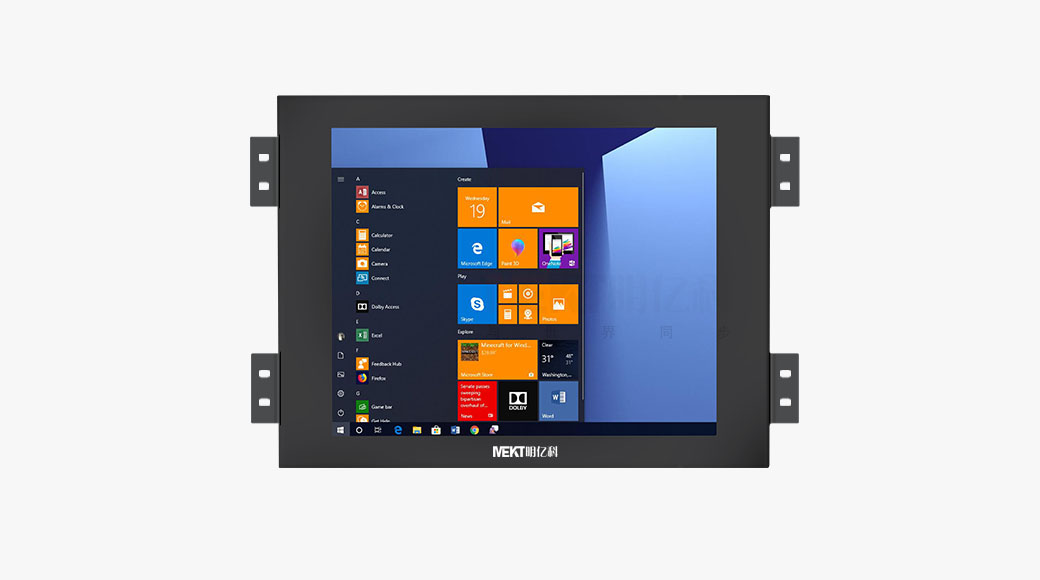

Industrial liquid crystal display (T804VSC)

Product model: T804VSC
Resolution: 800 by 600
Product brightness :350cd/㎡
Product features:
Strong metal shell, dustproof, vibration proof and anti - interference

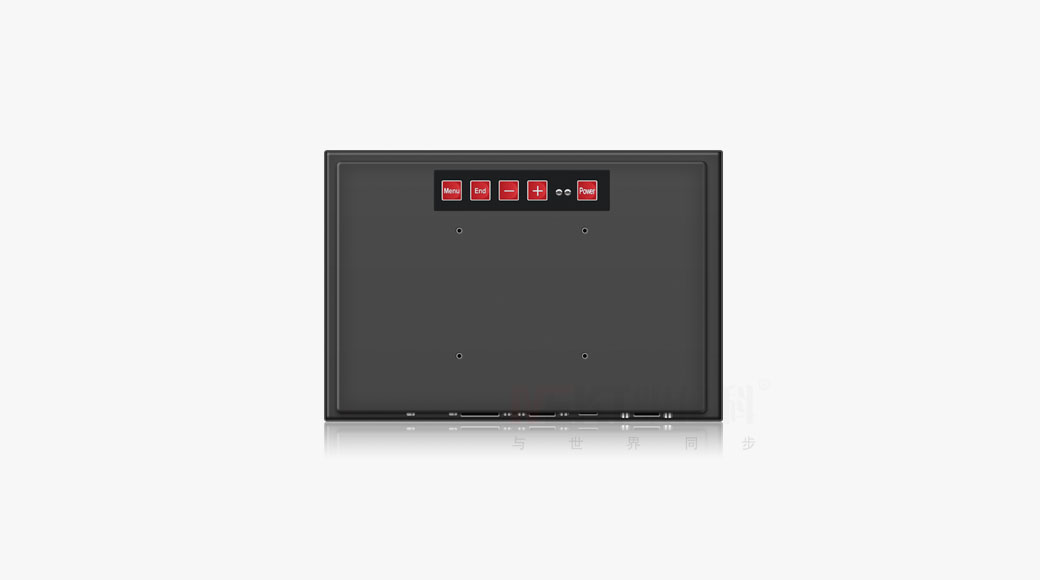

Power on function, OSD film button control
Support 100*100mm 75*75mm wall/desktop, embedded installation
Industrial - grade high - brightness display screen, longer life
Industrial design super heat dissipation, 24 hours repeated non-stop operation

Details
Parameter
Consulting
Technical Data

Brand	MEKT
Model	T804VSC T804VXC
Size	8.4inch
Product ratio	4:3
Resolution	800600 1024768
Brightness	350cd/㎡
Contrast	800:1
Display color	16.7M
Response time	8ms
Viewing angle	65/65/55/60(Typ.)(CR≥10)
Pitch （mm）	0.264(H)X0.264(V)
scanning frequency	60Hz
Quality	3D noise reduction high definition signal progressive scan
power input	DC12V
Functional interface	HDMI/DVI/VGA
Panel level	IP45
Visual area	172mm*130mm
Dimensions	242mm165mm45mm
Working temperature	-10 ~ +60℃
Storage temperature	-15 ~ +65℃
Relative humidity	5% ~ 95% No frost
Impact	10G(11MS)
Vibration	50 ~ 500 hz, 1.5 G, 0.15 mm
The machine color	Black
Product net weight	About 2 KG
	Metal material strong chassis, dust-proof, shockproof, anti-interference
	Power on function, OSD film button control
	Support75*75mm wall-mounted/desktop type, embedded installation
	Adopt industrial grade high brightness screen, life is longer.
	Industrial design super heat, 24 hours repeated non-stop operation
The standard interface	HDMI/DVA/VGA/DC
Free accessories	Power, power cord, VGA cable, manual
After-sales service	One year warranty，lifetime maintenance
Personality customization	Customizable product material, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc., can be OEM/ODM.
