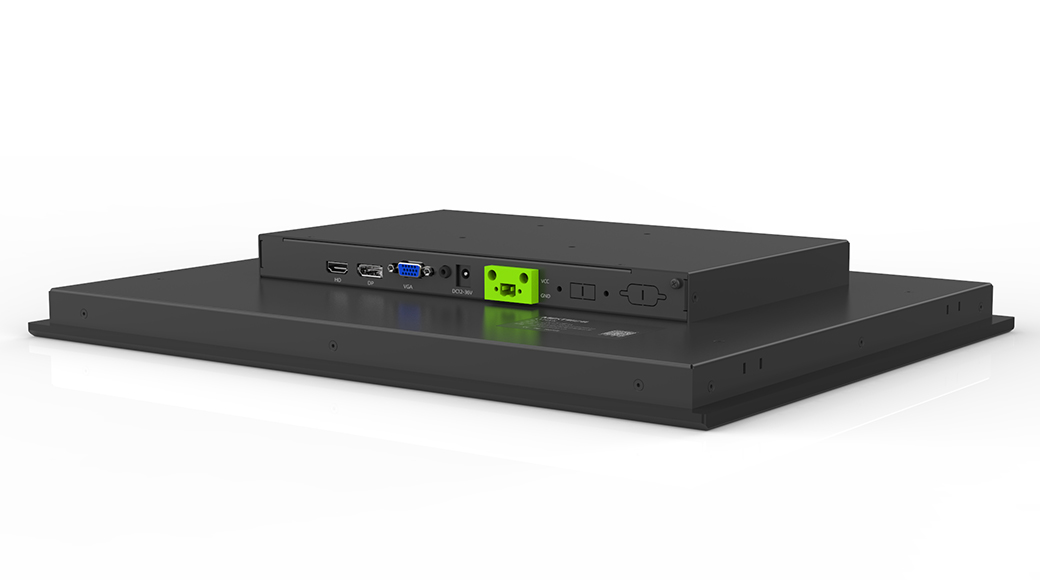

Touch the monitor 17 inches

Resistance touch screen display (L170VX)

Product model: L170VX
Resolution: 1280*1024
Product brightness :380cd/㎡
Product features:
Aluminum alloy strong metal housing, dustproof, anti - vibration, anti - interference
Power on function, OSD film button control
Support 100*100mm 75*75mm wall/desktop, embedded installation
Industrial - grade high - brightness display screen, longer life
Industrial design super heat dissipation, 24 hours repeated non-stop operation

Details
Parameter
Consulting
Technical Data

Brand	MEKT
Model	L170VX
Size	17inch
Product ratio	4:3
Resolution	1280*1024
Brightness	380cd/㎡
Contrast	1000:1
Display color	16.7M
Response time	8ms
Viewing angle	70/70/65/70 (Typ.)(CR≥10)
Pitch （mm）	0.289(H)X0.289(V)
scanning frequency	60Hz
Quality	3D noise reduction high definition signal progressive scan
Touch screen	5 line Resistance touch screen
The surface hardness	≥3H
Light transmittance	＞95%
Click life span	＞60 million times
power input	DC12V
Functional interface	VGA/USB(Optional RS232)
Panel level	IP45
Visual area	338mm*271mm
Dimensions	438mm336mm53mm
Working temperature	-10 ~ +60℃
Storage temperature	-15 ~ +65℃
Relative humidity	5% ~ 95% No frost
Impact	10G(11MS)
Vibration	50 ~ 500 hz, 1.5 G, 0.15 mm
The machine color	Black+Silver
Product net weight	About 5KG
	Aluminum alloy metal strong chassis, dust-proof, shockproof, anti-interference
	Power on function, OSD film button control
	Support100mm100mm 7575mm wall-mounted/desktop type, embedded installation
	Adopt industrial grade high brightness screen, life is longer.
	Industrial design super heat, 24 hours repeated non-stop operation
	Adopt the world leading projection multi-point capacitive touch screen with stable performance, precise positioning and no drift, sensitive to touch.
The standard interface	VGA/DC/USB(Touch the interface)
Free accessories	Power (12V4A)， power cord, VGA cable，USB cable，mounting clip，manual
After-sales service	One year warranty，lifetime maintenance
Personality customization	Customizable product material, appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc., can be OEM/ODM.
