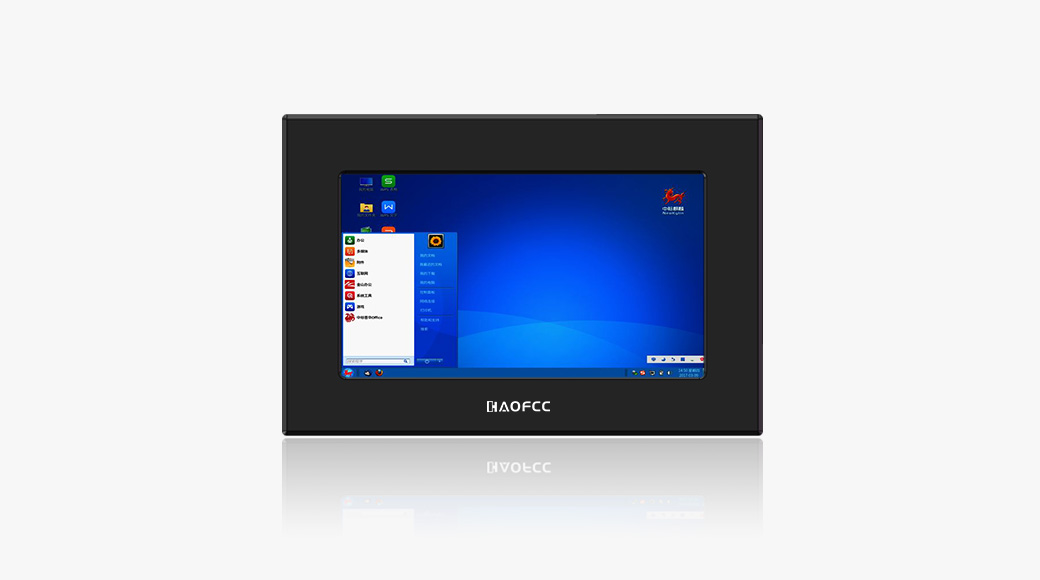

Industrial touch all-in-one machine 7 inchesIndustrial grade integrated resistor screen computer (l070cc-d) Product model: l070cc-d |
|
|
|
brand MEKT Ming million Size \ type L070CC - D model 7" Product ratio " The resolution of the 1024 * 600 Product brightness 300 CD / ㎡ contrast 800:1. Viewing Angle 85/85/85/85 According to the color 16.7 M Touch screen Industrial resistance touch screen The surface hardness P 3 h Light transmittance > 95% Click on the life > 60 million times The CPU Quad core 1.99 Hz The processor Intel® Celeron® J1900, 1.99, TDP 10W memory 4GB (optional other specifications) The hard disk 120 gb solid state Display function 1 * VGA Main interface 2*RS232(one of them supports rs485/422) 1*USB 2.0 1*USB3.0 1* VGA so Gigabit network card *1 interface USB*2, LAN*2, RS232*2, VGA*1, Power The operating system Windows 7 / Windows 8 / Windows 10 / Ubutu Panel level IP65 Overall dimensions 205 mm * 137 mm * 50 mm Working temperature - 20 ~ + 70 ℃ Storage temperature - 20 & have spent ~ + 70 ℃ Relative humidity No frost 5% ~ 95% impact 10 g (ms) vibration 50 ~ 500 hz, 1.5 G, 0.15 mm Product net weight About 1.5 KG Product features Aluminum alloy + metal solid shell, dust, vibration, anti - interference & have spent Power on function & have spent Support 75*75mm wall/desktop, embedded installation & have spent Industrial high brightness display, longer life & have spent Industrial design super heat dissipation, 24 hours repeat operation & have spent Industrial resistance touch screen, stable performance, accurate positioning without drift, sensitive touch Application field Military equipment, space equipment, medical equipment, rail transit/communications, professional photographic display Intelligent supermarket, intelligent robot, intelligent conference room, factory assembly line, POS cash register, car GPS, elevator, commercial office building, exhibition site and other personal and public places Product accessories Hook & have spent Power supply power cord & NBSP; & have spent Warranty card & NBSP; After-sales service The quality assurance for two years Personality customization Can customize product material, appearance, wide temperature screen, high screen, high resolution, wide voltage, OEM/ODM |
