Industrial notebook computer 17 inches

Windows 10 industrial military laptop

Product model: G170ST
Resolution: 1920*1080
Product brightness :300cd/㎡
Operating temperature: -0 °C ~ +60 °C
Storage temperature: -15 °C ~ +65 °C
Built-in battery: 9800 mAh polymer smart lithium battery, automatic induction temperature control device/automatic voltage induction technology
Working hours: about 7 hours (electromagnetic working hours)

Details
Parameter
Consulting
Technical Data

Brand	HAOFCC
Product Size	17Inch
Product number	G170ST
Product ratio	16:9
Resolution	1920*1080
Brightness	300cd/㎡
Contrast	800:1
Panel angle	85/85/85/85(Typ.)(CR≥10)
Display area	381.89×214.81 mm
LCD panel	Full view
Motherboard model	HF800B
processor	Intel（R）Core（TM）i7-8650U CPU @ 1.9GHz Max Turbo Frequency：4.2GHz
operating system	Windows 10Professional Edition
The number of cores	four core
Threads	Eight threads
L3 cache	8MB
Integrated Graphics	Intel(R)HD Graphics 630
Bus specifications	OPI 4GT/s
Graphics Base Frequency	300MHz
Graphics card maximum dynamic frequency	1.15GHz
Graphics characteristics	Graphics Video Max Memory：32GB Graphic output：eDP/HDM 4Kstand by：at60Hz Maximum resolution(HDMI 1.4)：4096x2304 Maximum resolution(VGA) Maximum resolution (eDP-integrated tablet)：4096x2304 DirectXstand by：12 OpenGLstand by：4.4 Show support quantity：3 Support Intel Quick Sync Video，InTru 3D technology, clear video core technology, clear video technology
Network card	Realtek PCIe GE Family Controller
	Realtek PCIe GE Family Controller #2
WIFI	Built-in wifi
RAM	DDR4 8GB （Optional 16GB 32GB ）
SSD	256GB（Optional 500GB 1TB ）
Touchpad	Resolution400*600DPI
Keypad	XArchitecture industrial keyboard
Built-in battery	9800 mAh Polymer intelligent lithium battery, automatic induction temperature control device / automatic voltage induction technology.
operating hours	About 7 hours (electromagnetic working time)
Built-in speaker	Built-in speaker 8 ohm 2W
USB	USB2.02 USB3.02
Audio	Audio * 1
MIC	MIC * 1
LAN	LAN * 2
VGA	VGA * 1
HDMI	HDMI * 1
COM	COM * 6 2 of them supported 485/422
Power interface	AC * 1power input 110V-240V
Total power	60W
Operating temperature	0 °C ~ +60 °C
storage temperature	-15 °C ~ +65 °C
Machine color	Black (other colors can be customized)
product weight	About 7KG

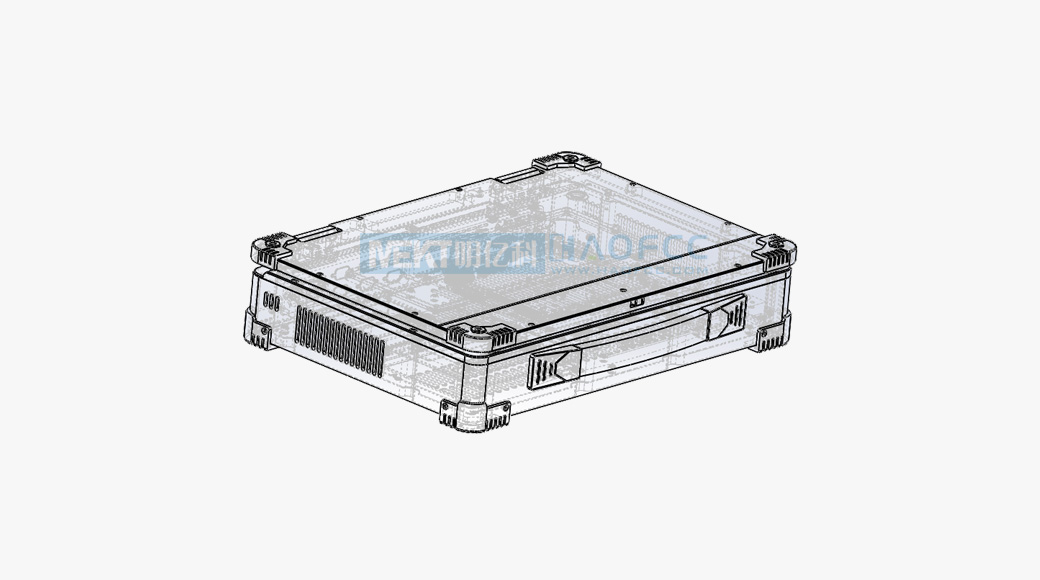

Features	Rugged housing made of aluminum frame, dust-proof, anti-vibration, anti-interference
	Adopt industrial grade A + display, longer life
	Industrial design with super heat dissipation, frameless design, beautiful appearance
Free accessories	power cable Manual
After sales service	1 year warranty Lifetime maintenance
Cleaning method	Spray the surface of the soft mirror cloth with screen cleaning solution or water to wipe the screen. Do not use alcohol, strong acid, strong alkali to wipe the screen. The case can be wiped with a soft towel or mirror cloth
Personalization	Customizable product material, appearance, wide temperature screen, bright screen, high resolution, wide voltage, etc., all OEM / ODM
