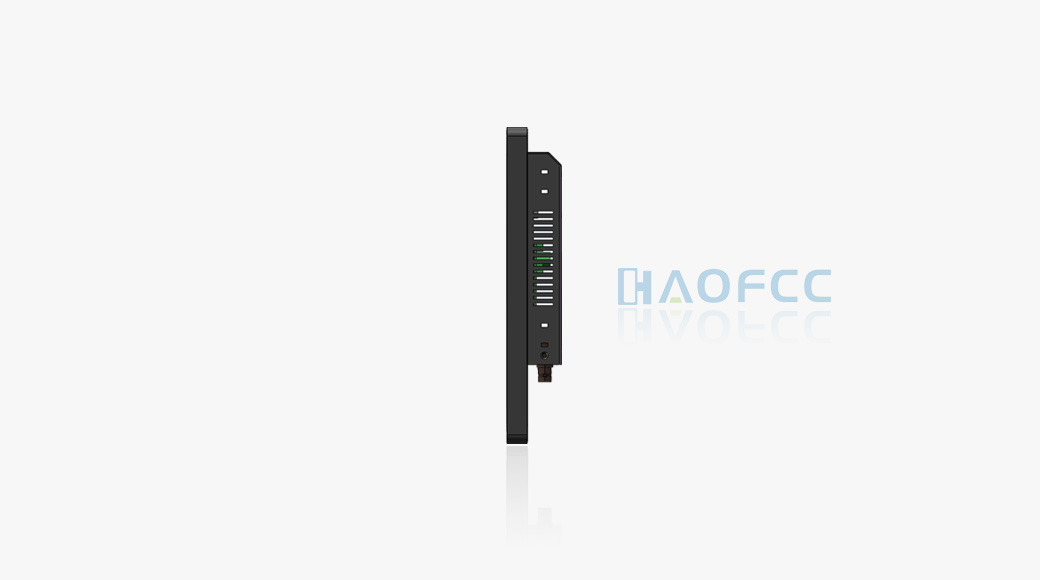

Industrial LCD monitor 15.6 inches

Model: M156SD

Model : M156SD
Resolution: 1920*1080
Brightness: 1000cd/㎡
Working temperature/humidity -20℃ ~ +70℃ 0% ~ 90% relative humidity, no condensation
Storage temperature/humidity -20℃ ~ +70℃ 0% ~ 90% relative humidity, no condensation

Details
Parameter
Consulting
Technical Data

Brand	HAOFCC
model	M156SD
size	15.6inch
proportion	16：9
Resolution	1920*1080
brightness	1000cd/㎡
Contrast	1000：1
Panel perspective	85/85/85/85(Typ.CR≥10)
Panel pitch	0.285（H）X0.285（V）
Display color	16.7M
Panel quality	3D Noise Reduction High Definition Signal Progressive Scan
Motherboard	HAOFCC
SDI	SG-SDI / HD-SDI / SD - SDI
	SDI x 1
	SDI x 1 Enter
VGA	Support mode	DOS / VGA / SVGA / XGA / SXGA
	Line frequency	30 - 80 kHz
	Field frequency	56 - 75 kHz
DVI	DVI 1.0 x 1 Enter
HDMI	HDMI 1.4 x 1 Enter
YPBPR	YPBPR x 1 Enter
BNC	BNC x 1 Enter （PAL/NTSC Automatic Identification）
BNC	BNC x 1 Output
AUDIO	PC Audio input
	AV Audio input
	Audio amplifier output
RS422	Video source switching can be controlled via RS422 interface, center cross overlay, superimposed characters, Chinese and English switching
DC powered	12V-36V（Wide pressure input）AC110V-AV240V/50-60Hz（XS8Automatic lock）（AC220V to 12V power supply with one）
touch screen	Capacitive touch screen (supports 2-point touch)
Touch screen interface	RS232 x 1
Built-in speaker	8 Euro 2W
Power consumption	20W
Operating temperature	-20℃ ~ +70℃
Storage humidity	-20℃ ~ +70℃
Working humidity	0% ~ 90% relative humidity, non-condensing
Storage humidity	0% ~ 90% relative humidity, non-condensing
weight	4KGWithin 4KG
After sales service	Two-year warranty
