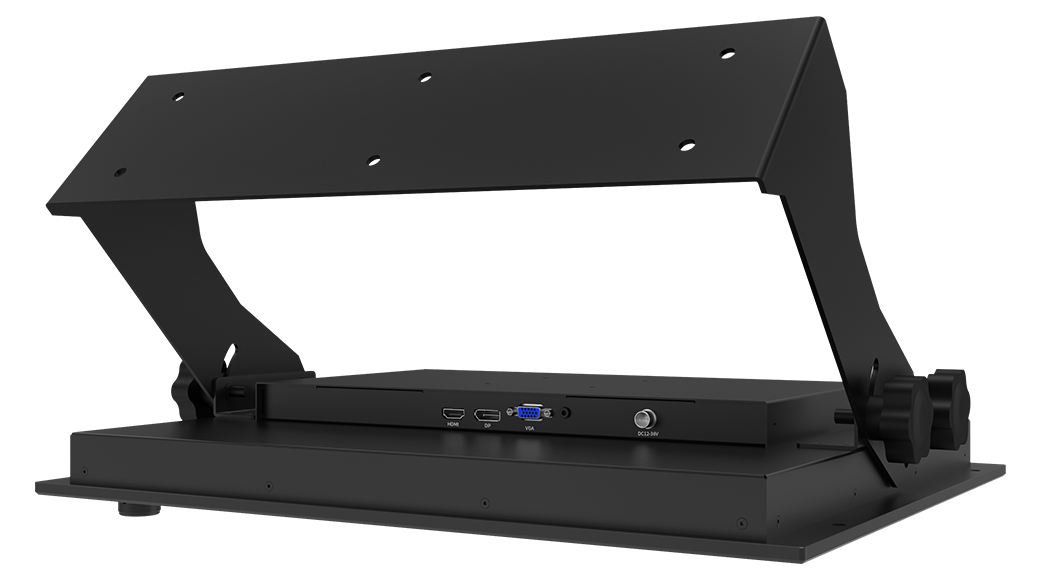

anti glare display 19 inch

M190VXC

Body material: aluminum alloy+sheet metal structure
Overall color: black (other colors can be customized)
Waterproof grade: Front panel waterproof grade IP65
Screen brightness: 350cd/㎡ (knob dimming can control 0%~100%)
Installation method: supports embedded, desktop, and wall mounted installation
Main board solution: independently developed industrial grade main board solution, supporting long-term uninterrupted work
Product features: DC12-36V wide voltage power supply, upgraded anti detachment interface/anti reverse connection protection
Strong anti-interference ability, corrosion resistance, salt spray resistance, anti glare, and other characteristics

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	MEKT明亿科
	Model	M190VXC
	Size/Proportion	19 inch 5:4
	Resolution	1280*1024
	Brightness	1000cd/㎡
	Contrast	800:1
	Display color	16.7m
	Response time	2-5ms
	Visible angle	85/85/80/80(Typ.CR≥10)
	Point distance(mm)	0.294（h）x 0.294（v）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12-36V
	Functional interface	HD,DP,VGA,Audio


Work Environment	Operating Temperature/humidity	-20℃ to +55℃/ 0-80% relative humidity, no condensation
	Storage Temperature/humidity	-20℃ to +60℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
