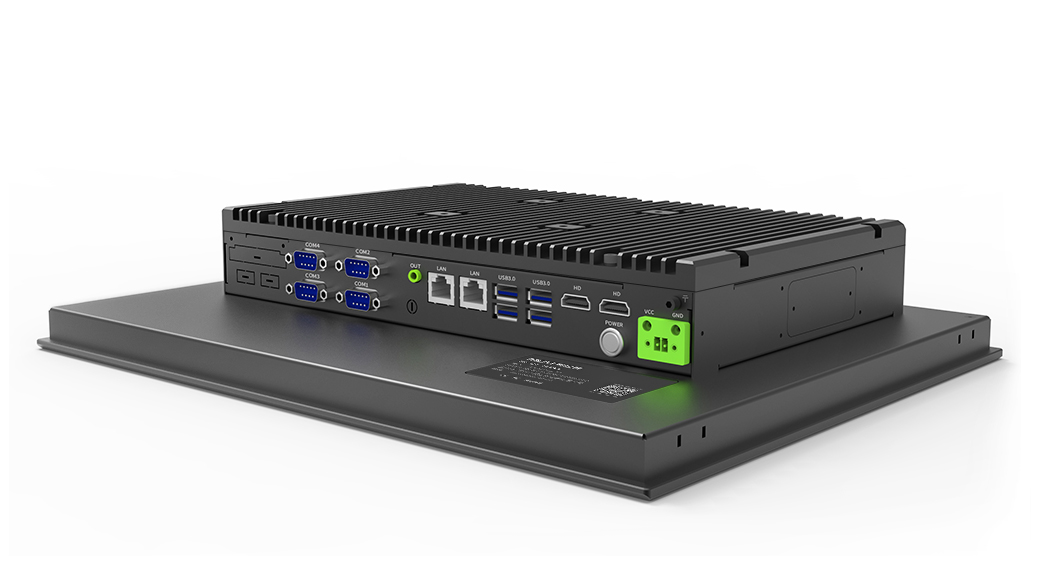

1000cd/㎡ Touch all in one machine 15inch

HF-21-150CC

body material: aluminum alloy+sheet metal structure
Overall color: black (other colors can be customized)
Waterproof grade: Front panel waterproof grade IP65
Touch mode: 10 points capacitive touch, can customize AG, AR touch screen
Main board solution: independently developed industrial grade main board solution, anti-static and electromagnetic interference resistant
Product features: DC12-24V wide voltage power supply, upgraded anti detachment interface/anti reverse connection protection
Installation method: supports embedded, desktop, wall mounted, and rotary arm installation
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	HAOFCC
	Model	HF-21-150CC
	Size/Proportion	15 inch 4:3
	discrimination rate	1024*768
	Brightness	1000cd/㎡
	Contrast	1000:1
	Display color	16.7m
	Response time	2-5ms
	Visible angle	80/80/70/70(Typ.CR≥10)
	Pixel pitch(mm)	0.297（h）x 0.297（v）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥7h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 70 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	click on a certain point and press for more than 3 seconds
	Touch interface	USB
	Support system	win7, win8, win10, android, linux and so on


Motherboard Function	Mainboard	HAOFCC industrial motherboard
	CPU	Intel Celeron 3855U dual-core dual-thread
		the cpu frequency is 1.6ghz
		Secondary cache 2MB
	integrated graphics	intel HD Graphics 510
	Graphics card frequency	300MHz
	dynamic frequency	900MHz
	RAM	4GB
	SSD	128GB (optional larger hard drive)
	LAN	LAN*2 100/1000M adaptive
	USB	USB3.0*4
	COM	RS2322, RS4852
	HD	HD*2


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (power-on and power-on function can be set)
Power Input	AC/DC	DC12-24V
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Product Power	Power	≤20W
Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	storage Temperature/humidity	-15℃ to +65℃/0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
