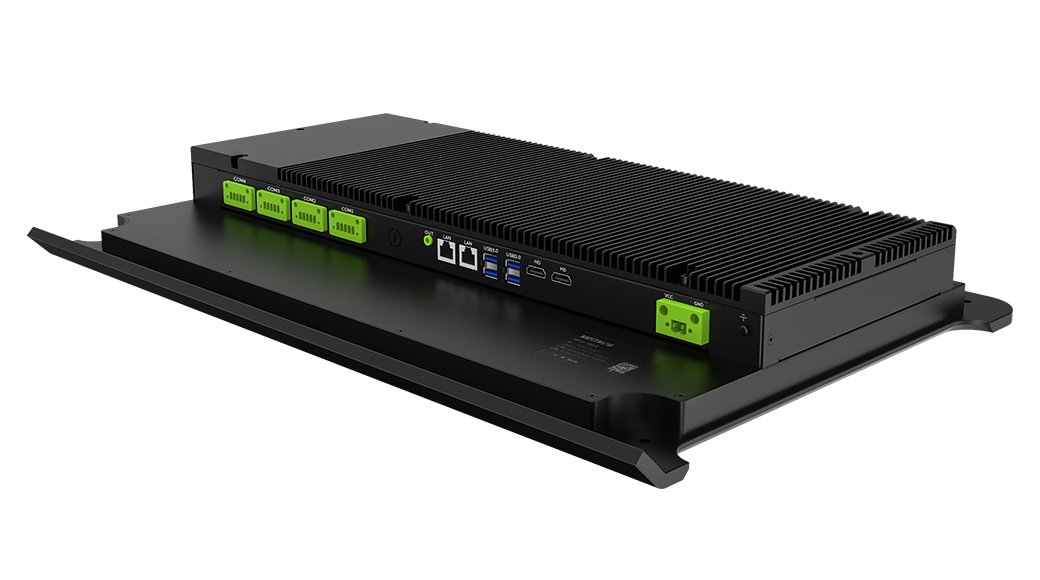

Military grade all-one aircraft 18.5 inches

HF-21-185CC

Body material: designed with aluminum alloy and sheet metal structure
Overall color: black (other colors can be customized)
Waterproof grade: Front panel IP65 waterproof grade
Screen brightness: 300cd/㎡ (customizable to 1000cd/㎡)
Touch method: 10 point capacitive touch (customizable AG AR optical full fit)
Main board solution: independently developed industrial grade wide temperature main board solution
Installation method: supports embedded, desktop, and wall mounted installation
Working temperature: -20 ℃ to+60 ℃/0-80% relative humidity, without condensation
Storage temperature: -40 ℃ to+70 ℃/0-90% relative humidity, no condensation

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	HAOFCC
	Model	HF-21-185CC
	Size/Proportion	18.5 inches 16:9
	Resolution	1366*768
	Brightness	300cd/㎡
	Contrast	800:1
	Display color	16.7m
	Response time	2-5ms
	Visible angle	85/85/85/85(Typ.CR≥10)
	Point distance(mm)	0.3000（H）X0.3000（V）
	Draw quality	progressive scan of 3d noise reduction and high definition signal


Touch Function	Touch screen	capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	click on a certain point and press for more than 3 seconds
	touch interface	usb
	support system	win7, win8, win10, android, linux and so on


Motherboard Function	mainboard	HAOFCC industrial motherboard
	CPU	Intel I5-7200U Dual Core Four Threads
		The main frequency of CPU is 2.5GHz The highest turbo frequency is 3.1GHz
		Level 3 cache 3MB
	Integrated graphics	Intel HD Graphics 620
	graphics card frequency	300MHz
	dynamic frequency	1000MHz
	RAM	4GB
	SSD	64GB (optional larger hard drive)
	LAN	LAN*2 100/1000M adaptive
	USB	USB3.0*4
	COM	RS232*4
	HD	HD*2


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (power-on and power-on function can be set)
Power Input	AC/DC	DC12-24V
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Product Power	Power	≤20W
Work Environment	Operating Temperature/humidity	-20℃ to +60℃/ 0-80% relative humidity, no condensation
	storage Temperature/humidity	-40℃ to +70℃/0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
