Capacitive touch all-one10.1inch

P101CC

Body material: designed with aluminum alloy and sheet metal structure
Waterproof grade: Industrial grade IP65dustproof and waterproof grade front panel
Touch method: 10 point capacitive touch (customizable AG AR optical full fit)
Working temperature: -10 ℃ to+60 ℃ (customizable from -40 ℃ to+80 ℃)
Storage temperature: -15 ℃ to+65 ℃
Motherboard solution: Intel ® celeron ® J6412, quad core quad threaded (optional I3/I5/I7)
Installation method: supports embedded, desktop, wall mounted, and rotary arm installation
Product features: dual network port 2.5G, DC9-36V wide voltage power supply, 4K output display
Windows embedded system, strong anti-interference ability, anti-corrosion, and other characteristics
Reserve more expandable interfaces to meet the expansion needs of various scenarios

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	HAOFCC
	Size/Proportion	10.1 inch 16:10
	Model	P101CC
	Brightness	450cd/㎡ Can be customized 1000cd/㎡
	Resolution	1280*800
	Contrast	1000:1
	Display color	16.7M
	Response time	2-5ms
	Visible angle	85/85/85/85(Typ.CR≥10)
	Pixel pitch	0.1695(H)X 0.1695(V)mm
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	click on a certain point and press for more than 3 seconds
	Touch interface	USB


Motherboard Function	Mainboard	HAOFCC industrial motherboard
	CPU	Intel Celeron J6412 Quad-core
		the cpu frequency is 2.0ghz，Speed Up to 2.6GHz
		Secondary cache 1.5 MB L2 Cache
	integrated graphics	Intel® UHD Graphics for 10th Gen Intel® Processors
	graphics card frequency	400MHz
	dynamic frequency	800MHz
	System	Windows 10 IoT Enterprise（support Windows11，Linux，UOS）
	RAM	4G (optional 8G/16G/32G)
	SSD	128G(optional 256G/512G/1T/2T)

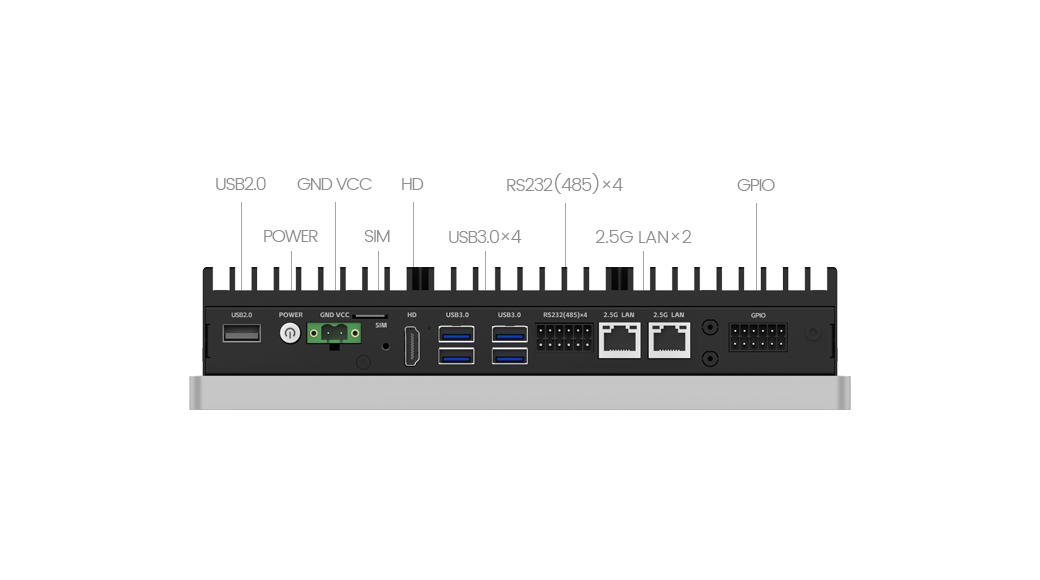

	LAN	LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive
	USB	USB3.04,USB2.01
	COM	RS232(485)*4 （customizable RS422）
	HD	HD*1
	SIM	SIM*1
	GPIO	GPIO*1


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (power-on and power-on function can be set)
Power Input	AC/DC	DC9-36V
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Product Power	Power	≤20W
Environment	Operating Temperature/humidity	-20℃ to +70℃/0-80% relative humidity, no condensation
	storage Temperature/humidity	-40℃ to +80℃/0-90% relative humidity, no condensation
	Vibration resistant	30Hz, X, Y, Z axis 60 minutes each
	Esd protection	Class 3, contact discharge ± 6KV, air discharge ±8KV
	Panel level	IK6
	Test standards	IEC60601
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
