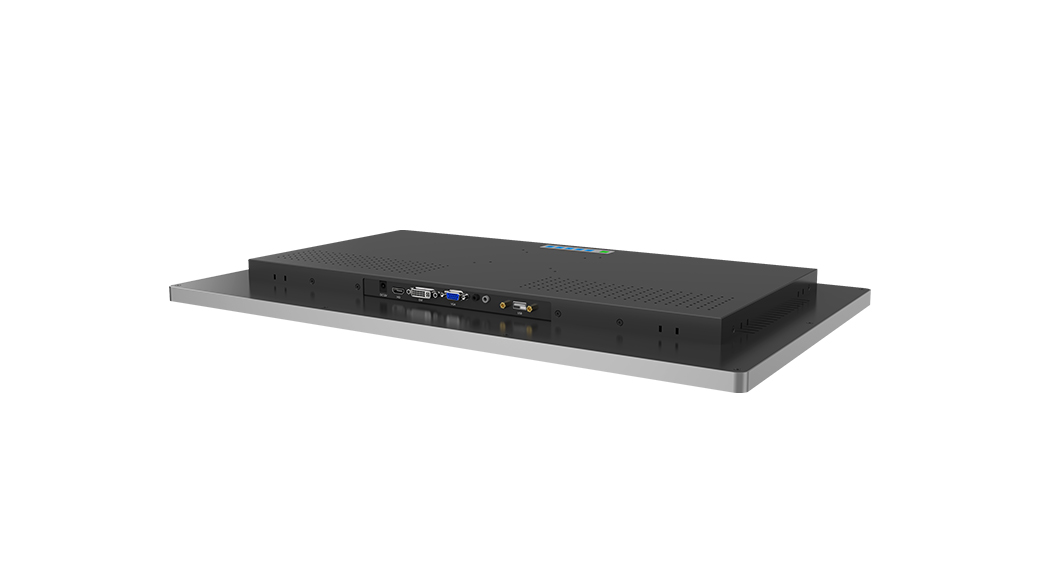

flat panel display 27 inches

P270WXDR

Adopting aluminum alloy+sheet metal structure
Pure flat industrial grade IP65 dustproof and waterproof grade
Capacitive touch screen, intuitive operation, not easy to touch by mistake
Supports embedded, desktop, wall mounted, and swivel arm installations
Independently developed industrial grade motherboard, anti-static and electromagnetic interference resistant
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold
Support industry specific environment customization, and interface screen configuration can be customized according to customer needs

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	MEKT明亿科
	Model	P270WXDR
	Size/Proportion	27 inch 16:9
	Resolution	1920*1080
	Brightness	300cd/㎡(Can be customized 1000cd/㎡)
	Contrast	800:1
	Cisplay color	16.7m
	Response time	3-5ms
	Visible angle	85/85/80/80(Typ.CR≥10)
	Pixel pitch(mm)	0.3114（H）X 0.3114（V）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	Capacitive touch screen (10 points)
	Surface hardness	≥6h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	Click on a certain point and press for more than 3 seconds
	Touch interface	USB
	Support system	win7, win8, win10, android, linux and so on


Motherboard Function	Refresh frequency	60Hz
	Power input	DC12V-36V
	Functional interface	HD，DP，VGA，Audio


Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	Storage Temperature/humidity	-15℃ to +65℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
