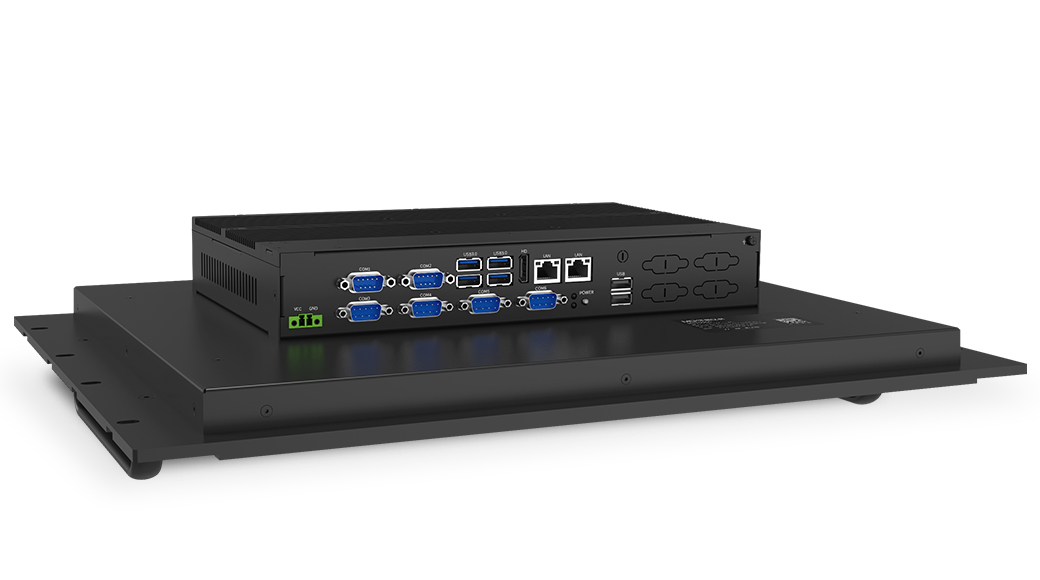

8U touch all-in-one 17 inches

M1700CC

Body material: aluminum alloy+sheet metal structure
Overall color: black (other colors can be customized)
Waterproof grade: Front panel waterproof grade IP65
Screen brightness: 350cd/㎡ (customizable to 1000cd/㎡)
Touch method: capacitive touch/resistive touch (customizable AG AR optical full fit)
Installation method: Standard rack installation, supporting both embedded and standard VESA wall mounting
Support industry specific environment customization, and interface screen configuration can be customized according to customer needs
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold
Reserved expandable interface, complete power supply data transmission function

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	HAOFCC
	Model	M1700CC
	Size/Proportion	17inch 5:4
	discrimination rate	1280*1024
	Brightness	380cd/㎡
	Contrast	1000:1
	Display color	16.7m
	Response time	2-5ms
	Visible angle	80/80/70/70(Typ.CR≥10)
	Pixel pitch(mm)	0.264（H）X 0.264（V）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Touch Function	Touch screen	5-wire Resistive touch
	Surface hardness	≥3h
	Transmittance	＞95%
	Positioning accuracy	less than 2mm
	Click lifetime	> 60 million times
	Touch medium	Current sensing, capacitive touch pen, finger
	Right-click function	click on a certain point and press for more than 3 seconds
	Touch interface	usb


Motherboard Function	Mainboard	HAOFCC industrial motherboard
	CPU	Intel Celeron 3867U dual-core dual-thread
		the cpu frequency is 1.8ghz
		Level 3 cache 2MB
	integrated graphics	intel HD Graphics 610
	frequency graphics card	300MHz
	dynamic frequency	900MHz
	RAM	4GB
	SSD	64GB(optional 32G\128G\500G\1T)
	LAN	LAN*2 100/1000M adaptive
	USB	USB3.04 USB2.02
	COM	RS232*6
	HD	HD*1
	Support system	win7, win8, win10, android, linux and so on


Wireless Network	Wireless card	Wifi is not available as standard (optional)
Open Close	Power	Power*1 (The power-on function can be set)
Power Input	AC/DC	DC12V(Wide voltage 12-36V can be ordered)
Watchdog	Watch dog timer	0-255 seconds, providing watchdog routine
Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	storage Temperature/humidity	-15℃ to +65℃/0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
