Android tablet 18.5 inches

AP185WX Ver.3

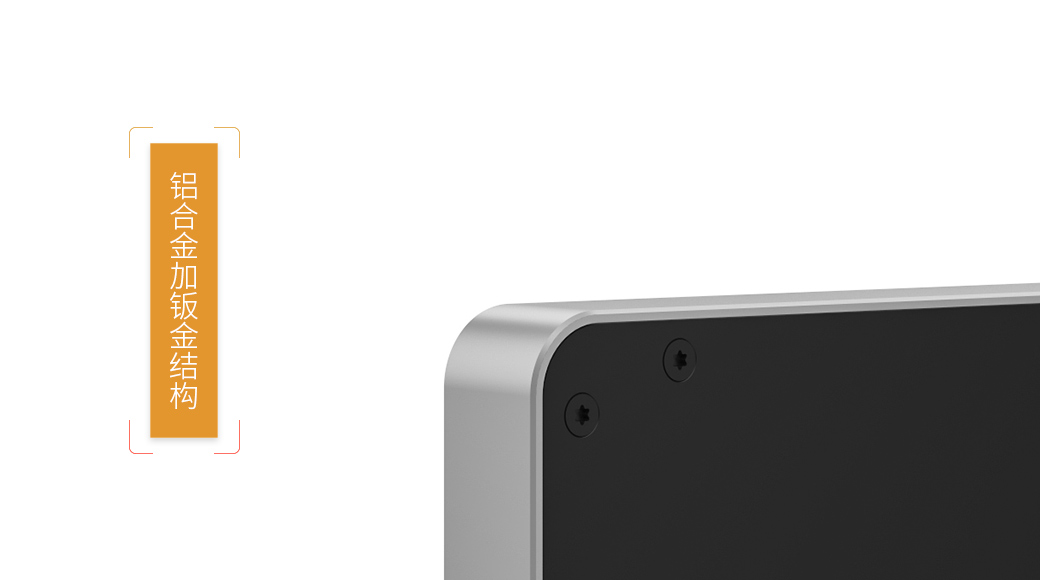

Body material: aluminum alloy+sheet metal structure
Overall color: black (other colors can be customized)
Waterproof grade: pure flat industrial grade IP65 dustproof and waterproof grade
Touch mode: 10 point capacitive touch, customizable AG and AR touch screens
Main board solution: independently developed industrial grade main board solution, anti-static and electromagnetic interference resistant
Installation method: supports embedded, desktop, wall mounted, and rotary arm installation
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold

Details
Parameter
Consulting
Technical Data

Display panel	Brand	MEKT明亿科
	Model	AP185WX Ver.3
	Size/Ratio	18.5 inch 16:9
	Resolution	1366*768
	Brightness	300cd/㎡(Can be customized 1000cd/㎡)
	Contrast degree	800:1
	Display color	16.7M
	Response time	2-5ms
	Viewing angle	85/85/85/85(Typ.CR≥10)
	Pixel pitch mm	0.3000（H）X0.3000（V）
	Picture quality	3D noise reduction High-definition signal Progressive scan


Touch function	Touch screen	capacitive touch screen (10 points)
	Surface hardness	≥6H
	Transmittance	＞95%
	Positioning accuracy	less than 2MM
	Click life	＞60 million times
	Touch media	current sensing, capacitive touch pen, finger
	Right-click function	Click a certain point, long press for more than 3 seconds
	Touch interface	USB


Motherboard function	Motherboard	HAOFCC industrial grade motherboard
	CPU	RK3568 Cortex-A55
		Quad-core 2GHz
		Core ARM Mali-G52
	RAM	2GB (optional 4G)
	Built-in storage	16GB (optional 32G)
	Built-in speaker	Built-in speaker
	Decoding resolution	Support up to 3840*2160
	Network support	Ethernet LAN, wifi (expandable 3G wireless module, Bluetooth 4.0)
	RTC real-time clock	Support
	Time switch machine	Support
	Operating system	Android 11
	LAN	LAN 100/1000M adaptive
	USB	USB2.01,USB3.01
	TF/Card	card slot*2
	COM	COM*3 (TTL signal can be purchased)
	HD	HD
	Audio	Audio output, support left and right channel output


Wireless network	Wireless network card	Wifi
Power input	AC/DC	DC12V
Working environment	Working temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, non-condensing
	Storage temperature/humidity	-15℃ to +65℃/ 0-90% relative humidity, non-condensing
Product service	After-sales service	One year warranty and lifetime maintenance
	Customized service	Material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc., all OEM/ODM
