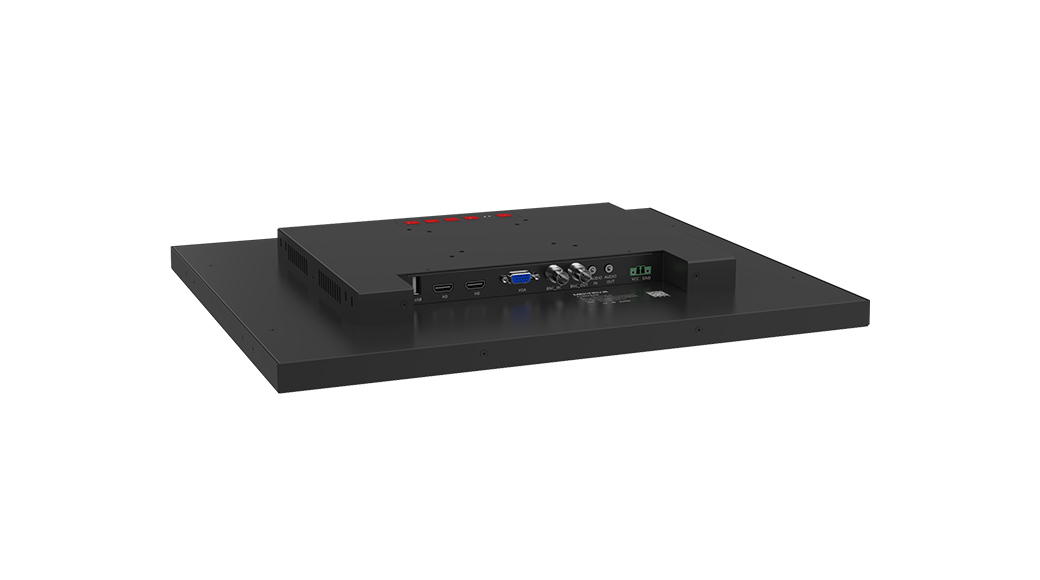

HD LCD monitors

T190VXHD

Body material: reinforced sheet metal structure
Overall color: black (other colors can be customized)
Screen brightness: 350cd/㎡ (customizable to 1000cd/㎡)
Working temperature: -10 ℃ to+60 ℃/0-80% relative humidity, without condensation
Storage temperature: -15 ℃ to+65 ℃/0-90% relative humidity, no condensation
Installation method: supports embedded, desktop, wall mounted, and rotary arm installation
Optional low temperature/wide temperature type, meeting the harsh environmental requirements of high temperature/high cold
Support industry specific environment customization, and interface screen configuration can be customized according to customer needs

Details
Parameter
Consulting
Technical Data

Display Pane	Brand	MEKT明亿科
	Model	T190VXHD
	Size/Proportion	19 inch 5:4
	Resolution	1280*1024
	Brightness	350cd/㎡（Upgradable 1000cd/㎡）
	Contrast	800:1
	Cisplay color	16.7m
	Response time	3-5ms
	Visible angle	85/85/80/80(Typ.CR≥10)
	Pixel pitch(mm)	0.294（H）X 0.294（V）
	Draw quality	3D noise reduction, high-definition signal, progressive scan


Interface Function	Power input	DC12V
	HD	HD*2
	VGA	VGA*1
	video input	BNC terminal*1 input
	video output	BNC terminal*1 output
	USB input	Play video and upgrade software functions
	AUDIO	AUDIO input1、AUDIO output1
	OSD	Chinese、English
	Proportional support	4:3, 16:9, Panoramic
	Screen display mode	/
	Audio	Built-in speakers


Work Environment	Operating Temperature/humidity	-10℃ to +60℃/ 0-80% relative humidity, no condensation
	Storage Temperature/humidity	-10℃ to +65℃/ 0-90% relative humidity, no condensation
Product Service	After service	one-year warranty and lifelong maintenance
	Customized service	OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc.
