Display Pane
|
Brand
|
HAOFCC
|
|
Size/Proportion
|
24 inch 16:9
|
|
Model
|
P240CC
|
|
Brightness
|
450cd/㎡ optional 1000cd/㎡
|
|
Resolution
|
1920*1080 optional 3840*2160
|
|
Contrast
|
1000:1
|
|
Display color
|
16.7M
|
|
Response time
|
2-5ms
|
|
Visible angle
|
85/85/85/85(Typ.CR≥10)
|
|
Pixel pitch
|
0.3114×0.3114 (H×V) [81PPI]
|
|
Draw quality
|
3D noise reduction, high-definition signal, progressive scan
|
|
|
Touch Function
|
Touch screen
|
Capacitive touch screen (10 points)
|
|
Surface hardness
|
≥6h
|
|
Transmittance
|
>95%
|
|
Positioning accuracy
|
less than 2mm
|
|
Click lifetime
|
> 60 million times
|
|
Touch medium
|
Current sensing, capacitive touch pen, finger
|
|
Right-click function
|
click on a certain point and press for more than 3 seconds
|
|
Touch interface
|
USB
|
|
|
Motherboard
Function
|
Mainboard
|
HAOFCC industrial motherboard
|
|
CPU
|
Intel Celeron J6412 Quad-core
|
|
|
the cpu frequency is 2.0ghz, Speed Up to 2.6GHz
|
|
|
Secondary cache 1.5 MB L2 Cache
|
|
integrated graphics
|
Intel® UHD Graphics for 10th Gen Intel® Processors
|
|
graphics card frequency
|
400MHz
|
|
dynamic frequency
|
800MHz
|
|
System
|
Windows 10 IoT Enterprise(support Windows11,Linux,UOS)
|
|
RAM
|
4G (optional 8G/16G/32G)
|
|
SSD
|
128G(optional 256G/512G/1T/2T)
|
|

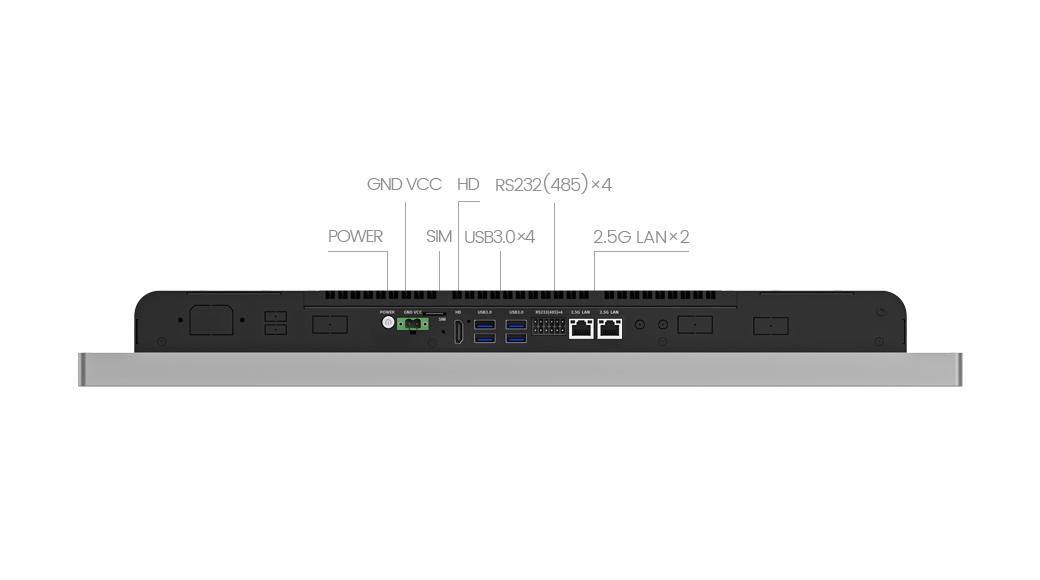

LAN
|
LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive
|
|
USB
|
USB3.0*4
|
|
COM
|
RS232(485)*4 (customizable RS422)
|
|
HD
|
HD*1
|
|
SIM
|
SIM*1
|
|
Extensible
|
6 expansion interfaces,(interface type COM,GPIO,USB,AC)
|
|
|
Wireless Network
|
Wireless card
|
Wifi is not available as standard (optional)
|
Open Close
|
Power
|
Power*1 (power-on and power-on function can be set)
|
Power Input
|
AC/DC
|
DC9-36V
|
Watchdog
|
Watch dog timer
|
0-255 seconds, providing watchdog routine
|
Product Power
|
Power
|
≤20W
|
Environment
|
Operating
Temperature/humidity
|
-10℃ to +60℃/ 0-80% relative humidity, no condensation
|
|
storage
Temperature/humidity
|
-15℃ to +65℃/0-90% relative humidity, no condensation
|
|
Vibration resistant
|
30Hz, X, Y, Z axis 60 minutes each
|
|
Esd protection
|
Class 3, contact discharge ± 6KV, air discharge ±8KV
|
|
Panel level
|
IK6
|
|
Test standards
|
IEC60601
|
Product Service
|
After service
|
one-year warranty and lifelong maintenance
|
|
Customized service
|
OEM/ODM is available for material, appearance, dimensions,
wide temperature, outdoor highlight, wide voltage, etc.
|
